Selected: Classic Mini Electronic Speedo Drive Adapter pre-1980
Select variations below for more info:

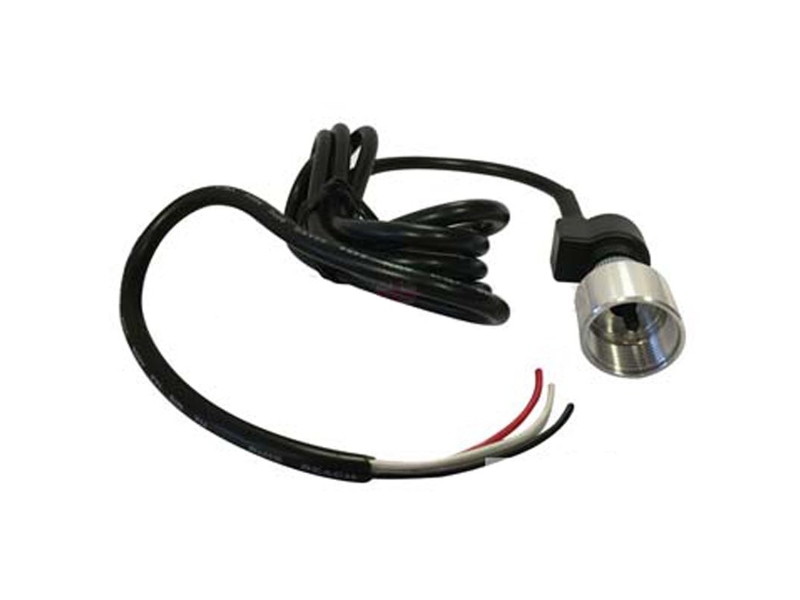

This unit fits directly on to the gearbox in place of the standard cable and produces a digital signal for use with any electronic speedometer requiring 12 or 5 volt square wave pulse such as our electronic speedos 13H4443 & 13H4445. Fits pre 1980 speedo drive pinions, for post 1980 use GSD1001.
Wire as per below:
Red Wire - +12volts switched live
Black WIre - Ground/earth
White wire - signal output
The signal is a square wave 7 volt output pulsing 6 times per single revolution of the cable.
It will not work with gauges that require a two wire sine wave input.
Wire as per below:
Red Wire - +12volts switched live
Black WIre - Ground/earth
White wire - signal output
The signal is a square wave 7 volt output pulsing 6 times per single revolution of the cable.
It will not work with gauges that require a two wire sine wave input.
This unit fits directly on to the gearbox in place of the standard cable and produces a digital signal for use with any electronic speedometer requiring 12 or 5 volt square wave pulse such as our electronic speedos 13H4443 & 13H4445. Fits pre 1980 speedo drive pinions, for post 1980 use GSD1001.
Wire as per below:
Red Wire - +12volts switched live
Black WIre - Ground/earth
White wire - signal output
The signal is a square wave 7 volt output pulsing 6 times per single revolution of the cable.
It will not work with gauges that require a two wire sine wave input.
Wire as per below:
Red Wire - +12volts switched live
Black WIre - Ground/earth
White wire - signal output
The signal is a square wave 7 volt output pulsing 6 times per single revolution of the cable.
It will not work with gauges that require a two wire sine wave input.
