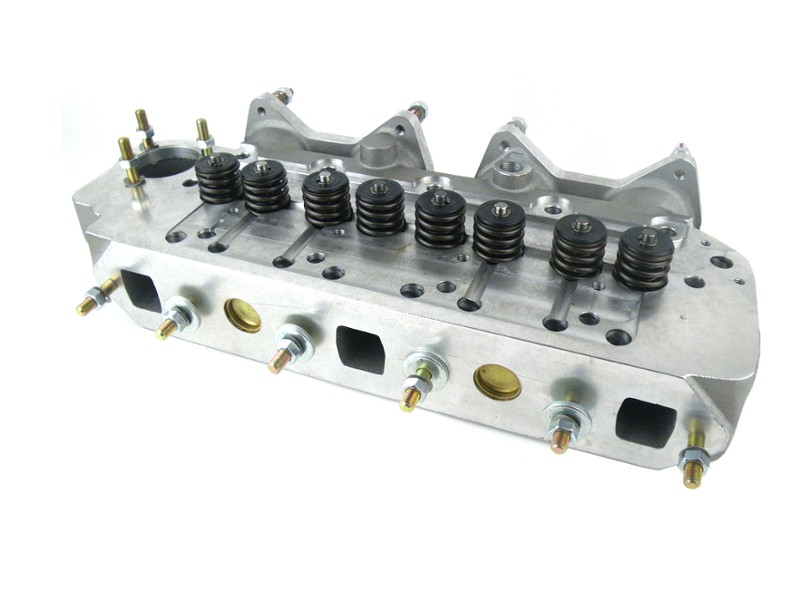

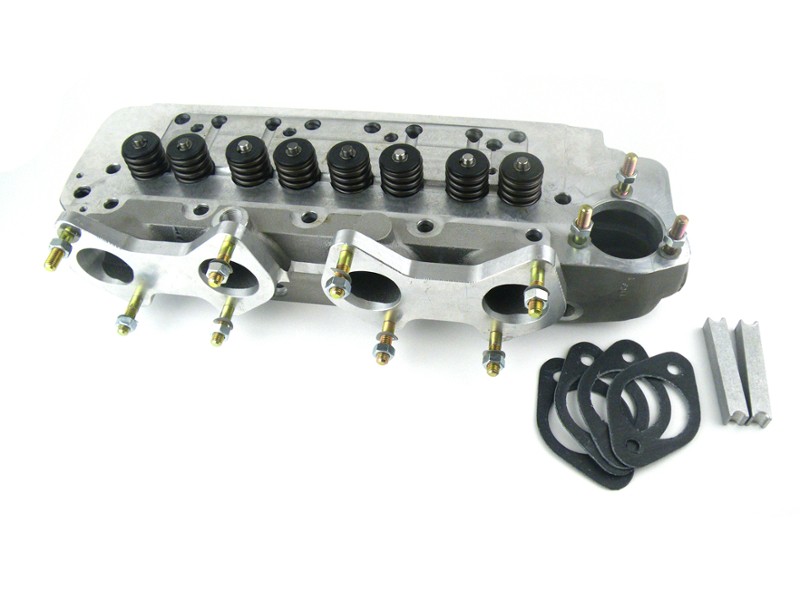

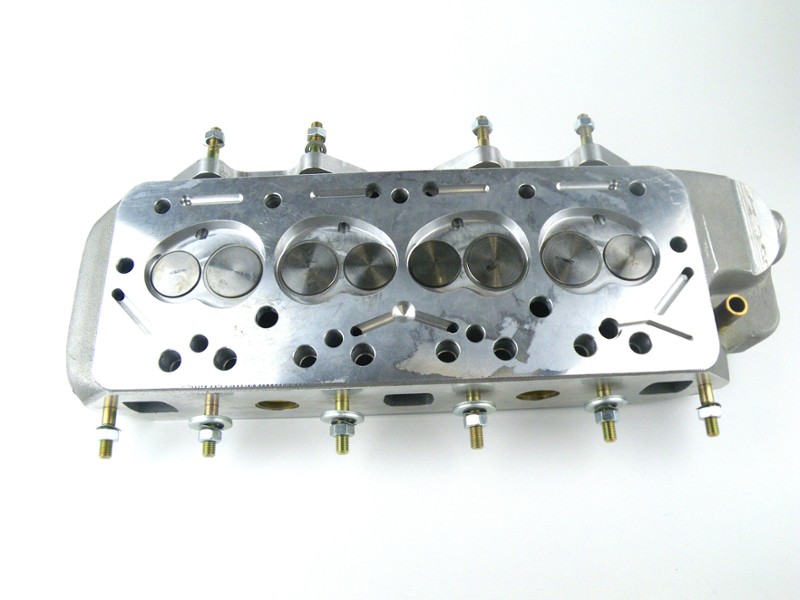

The head is supplied with the standard 1.3" intake, and 1.15" exhaust valves, and uses the 10mm plug from Autolite 4303 spark plugs.
For ultimate performance, this head is cast for large bore engines with the valve-spacing increased to allow much bigger valves without the expense and complexity of using off-set guides. It will accept 1.44" intake valves and 1.21" exhaust valves buy simply cutting back the seats and opening up the valve throats. It can have up to 1.48" intake valves, if the exhaust is kept at 1.15", matching the full SCCA race-spec heads. There is ample material to surface the deck for high compression engines to go with the enormous valves.
In addition, this head is the best choice for tuners adapting modern fuel injection systems as the individual intake runners allow precise fuel metering and control not possible with the stock shared ports. Stay tuned for a stand-alone port fuel injection system that mounts compact throttle bodies instead of huge carbs! That's how the Fuel Injection Mini SHOULD have been! Also fits Sprite and MG Midget .
The only other major parts needed are a pair of Weber carbs. To really take advantage of the new head you should consider a performance camshaft and probably raising compression. Although these are not "Needed" the performance upgrade would not be worth it. In addition it would be extremely beneficial to adjust the Weber jetting while on a Dyno.
The head is shipped with a chamber volume of 24cc to allow our customers to simply mill the face of the head to their specific needs. If you would rather have us to that for you simply tell us what volume you want.
Mini Mania Tech Team
The Classic Mini Parts and Accessories Experts
We can do that for you and it wouldn't be much more. You will need to phone the order in on this one. We would also need to check availability on the head.
It could take 3-6 weeks or more to do one.
Talk to you soon
The head is supplied with the standard 1.3" intake, and 1.15" exhaust valves, and uses the 10mm plug from Autolite 4303 spark plugs.
For ultimate performance, this head is cast for large bore engines with the valve-spacing increased to allow much bigger valves without the expense and complexity of using off-set guides. It will accept 1.44" intake valves and 1.21" exhaust valves buy simply cutting back the seats and opening up the valve throats. It can have up to 1.48" intake valves, if the exhaust is kept at 1.15", matching the full SCCA race-spec heads. There is ample material to surface the deck for high compression engines to go with the enormous valves.
In addition, this head is the best choice for tuners adapting modern fuel injection systems as the individual intake runners allow precise fuel metering and control not possible with the stock shared ports. Stay tuned for a stand-alone port fuel injection system that mounts compact throttle bodies instead of huge carbs! That's how the Fuel Injection Mini SHOULD have been! Also fits Sprite and MG Midget .
The only other major parts needed are a pair of Weber carbs. To really take advantage of the new head you should consider a performance camshaft and probably raising compression. Although these are not "Needed" the performance upgrade would not be worth it. In addition it would be extremely beneficial to adjust the Weber jetting while on a Dyno.
The head is shipped with a chamber volume of 24cc to allow our customers to simply mill the face of the head to their specific needs. If you would rather have us to that for you simply tell us what volume you want.
Mini Mania Tech Team
The Classic Mini Parts and Accessories Experts
We can do that for you and it wouldn't be much more. You will need to phone the order in on this one. We would also need to check availability on the head.
It could take 3-6 weeks or more to do one.
Talk to you soon
