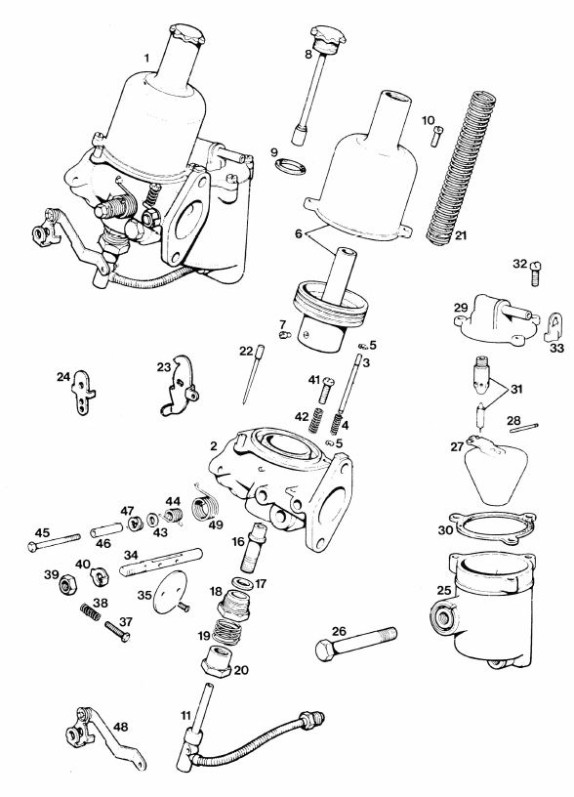

Morris Minor Single Carburetter- HS2 for use with 1098cc engines
Records - of
# |
Part No |
Alt Part No |
Qty |
Description |
|---|---|---|---|---|
| 1 | CRB246 | 1 | Carburetter assembly |
|
| 2 | CRB247 | 1 | Body |
|
| 3 | CRB214 | 1 | Pin -piston lifting |
|
| 4 | CRB106 | 1 | Spring - pin |
|
| 5 | CRB105 | 2 | Circlip - pin |
|
| 6 | CRB169 | 1 | Chamber and piston assembly |
|
| 7 | CRB170 | 1 | Screw - needle locking |
|
| 8 | CRB244 | 1 | Cap and damper |
|
| 9 | CRB171 | 1 | Washer - fibre |
|
| 10 | CRB199 | 1 | Screw - chamber to body |
|
| 11 | CRB245 | 1 | Jet assembly |
|
| 16 | CRB216 | 1 | Bearing - jet |
|
| 17 | CRB217 | 1 | Washer - jet bearing (brass) |
|
| 18 | CRB218 | 1 | Screw - jet locking |
|
| 19 | CRB113 | 1 | Spring - jet locking |
|
| 20 | CRB219 | 1 | Screw - jet adjusting |
|
| 21 | CRB172 | 1 | Spring - piston - red |
|
| 22 | CRB248 | 1 | Needle - jet - rich (HC) |
|
| 22 | CRB249 | 1 | Needle - jet - standard (AN) |
|
| 22 | CRB250 | 1 | Needle - jet - weak (EB) |
|
| 23 | CRB223 | 1 | Lever - throttle return |
|
| 24 | CRB251 | 1 | Lever - cam |
|
| 25 | CRB225 | 1 | Chamber - float |
|
| 26 | CRB226 | 1 | Bolt - float chamber fixing |
|
| 27 | CRB227 | 1 | Float |
|
| 28 | CRB157 | 1 | Pin - hinge |
|
| 29 | CRB228 | 1 | Lid - float chamber |
|
| 30 | CRB229 | 1 | Washer -lid |
|
| 31 | CRB230 | 1 | Needle and seat |
|
| 32 | CRB110 | 1 | Screw -lid |
|
| 33 | CRB231 | 1 | Plate - baffle |
|
| 34 | CRB232 | 1 | Spindle - throttle |
|
| 35 | CRB186 | 1 | Disc - throttle |
|
| 36 | CRB136 | 1 | Screw - disc |
|
| 37 | CRB233 | 1 | Screw - stop |
|
| 38 | CRB140 | 1 | Spring - screw |
|
| 39 | CRB207 | 1 | Nut - spindle |
|
| 40 | CRB252 | 1 | Washer - tab |
|
| 41 | CRB233 | 1 | Screw - throttle stop |
|
| 42 | CRB140 | 1 | Spring - screw |
|
| 43 | CRB253 | 1 | Washer - cam lever |
|
| 44 | CRB254 | 1 | Spri ng - cam lever |
|
| 45 | CRB236 | 1 | Bolt - pivot |
|
| 46 | CRB237 | 1 | Tube - pivot bolt |
|
| 47 | CRB238 | 1 | Washer - spring |
|
| 48 | CRB255 | 1 | Lever and link pick-up |
|
| 49 | CRB241 | 1 | Spring - pick-up lever |
