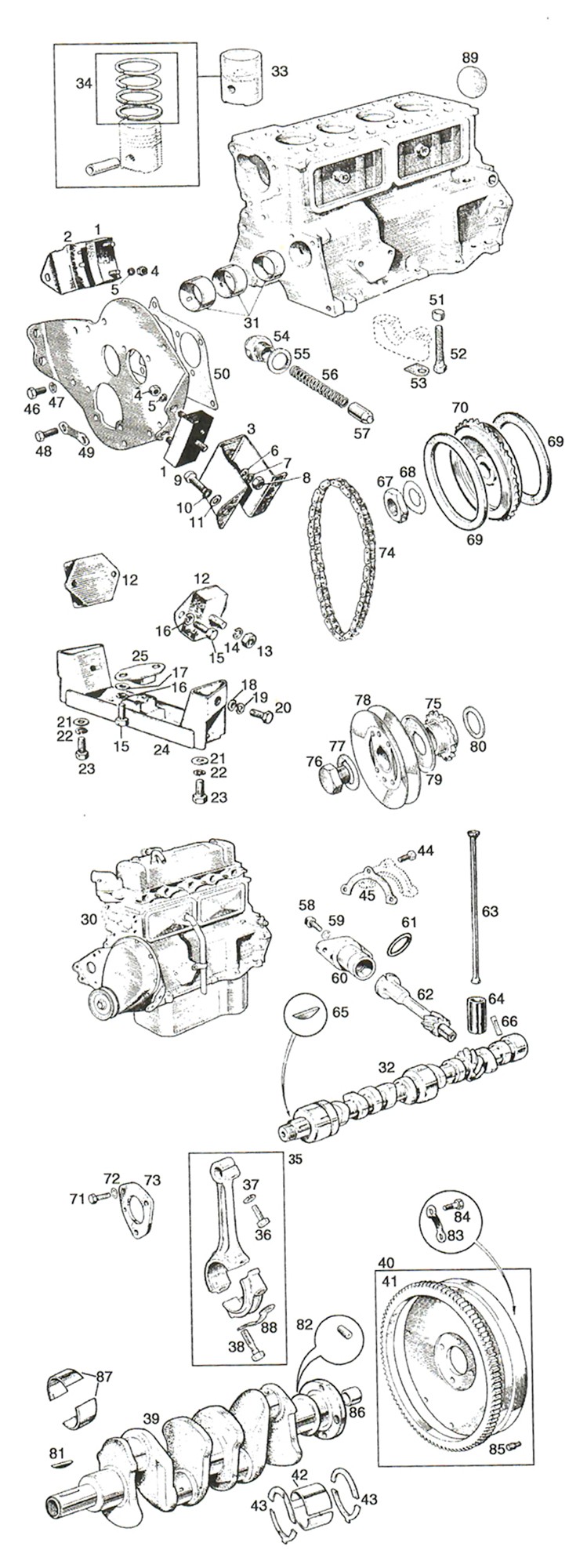

Sprite/Midget 948cc & 1098cc Internal Engine
Records - of
# |
Part No |
Qty |
Description |
|---|---|---|---|
| 1 | AHA5484 | 2 | ENGINE MOUNT USE 31G1225 |
| 2 | CHA218 | 1 | ENGINE MOUNT BRACKET, RIGHT HAND USE U-CHA218 |
| 3 | CHA219 | 1 | ENGINE MOUNT BRACKET, LEFT HAND USE U-CHA219 |
| 4 | GHF201 | 4 | 5/16" UNF NUT |
| 5 | WL2051 | 4 | LOCK WASHER 5/16" |
| 6 | GHF302 | 2 | 3/8' PLAIN WASHER |
| 7 | GHF333 | 2 | 3/8" LOCK WASHER |
| 8 | GHF202 | 2 | 3/8" UNF NUT |
| 9 | GHF120 | 6 | BOLT 5/16" UNF X .75" LONG |
| 10 | WL2051 | 6 | LOCK WASHER 5/16" |
| 11 | WU2041 | 6 | PLAIN WASHER 5/16" |
| 12 | AHA9307 | 2 | GEARBOX SIDE MOUNTS |
| 13 | GHF202 | 2 | 3/8" UNF NUT |
| 14 | GHF333 | 2 | LOCK WASHER 3/8" |
| 15 | SH505061 | 6 | BOLT 5/16" UNC X .75" |
| 16 | WL2051 | 6 | LOCK WASHER 5/16" |
| 17 | WU2041 | 2 | PLAIN WASHER 5/16" |
| 18 | PWZ205 | 2 | PLAIN WASHER 5/16" LARGE |
| 19 | WL2051 | 2 | LOCK WASHER 5/16" |
| 20 | GHF120 | 2 | BOLT 5/16” UNF x .75” LONG |
| 21 | GHF302 | 2 | PLAIN WASHER 3/8" |
| 22 | GHF333 | 2 | LOCK WASHER 3/8" |
| 23 | BH606261 | 2 | BOLT 3/8" UNF X 3.25" LONG |
| 24 | 2A5552 | 1 | CROSS MEMBER FOR GEARBOX MOUNTING USE U-2A5552 |
| 25 | 2A5420 | 1 | CENTER GEARBOX MOUNT TO CROSSMEMBER |
| 30 | 1275_INLINE-KIT | 1 | REBUILT 1275 & 1380 ENGINES - VARIOUS TYPES 948 & 1098CC ENGINES REBUILT ON CASE TO CASE BASIS - CALL |
| 31 | BHM1210 | 1 SET | CAM BEARING SET FOR TAPPET COVER ENGINES USE VPC956 |
| 32 | CAM001-P | 1 | CAMSHAFTS FOR SPRITE & MIDGET ENGINES VARIOUS TYPES |
| 33 | 9M122-P | 1 SET | 948CC DISHED PISTONS, VARIOUS OVERSIZES ** SEE NOTE AT BOTTOM OF PAGE ** |
| 33 | 16179-P | 1 SET | 1098CC PISTON SET, VARIOUS OVERSIZES |
| 33 | 16179-STD-CO-P | 1 SET | 1098CC COUNTY BRAND PISTONS SETS, VARIOUS OVERSIZES |
| 33 | 22463-STD-EA-P | 4 | 998CC FLAT TOP PISTONS, VARIOUS (SOLD EACH) CAN BE USED AS 948CC OVERSIZED PISTONS - NOT FOR 1098CC |
| 33 | 22463-STD-P | 1 SET | 998CC FLAT TOP PISTONS, VARIOUS (SET) SET OF 998CC FLAT TOP PISTONS - NOT FOR 1098CC |
| 34 | R32026-P | 1 SET | 4-RING 99C/1098 PISTON RING SET VARIOUS SIZES |
| 34 | RA17926-P | 1 SET | 4-RING 99C/1098 PISTON RING SET VARIOUS SIZES |
| 35 | 12A1627 | 2 | 948 CONNECTING ROD CYLINDERS 1-3 No Longer Available |
| 35 | 12A1626 | 2 | 948 CONNECTING ROD CYLINDERS 2-4 No Longer Available |
| 35 | 12G126 | 2 | 1098 CONNECTING ROD CYLINDER 1-3 No Longer Available |
| 35 | 12G123 | 4 | 1098 CONNECTING ROD CYLINDER 2-4 No Longer Available |
| 36 | 51K1382 | 4 | BOLT SMALL END 948/1098 CONNECTING RODS |
| 37 | WL2015 | 4 | LOCK WASHER 5/16" |
| 38 | 2A659 | 8 | BIG END BOLT FOR 948 CONNECTING RODS NLA |
| 38 | 12G2217 | 8 | BIG END BOLT FOR 1098 CONNECTING RODS |
| 39 | 2A828 | 1 | 948 CRANKSHAFT No Longer Available |
| 39 | 8G2737 | 1 | 10CG 1.75" MAIN 1098CC CRANKSHAFT No Longer Available |
| 39 | 12G429 | 1 | 10CC 2" MAIN 1098CC CRANKSHAFT No Longer Available |
| 40 | AEA594 | 1 | 948 FLYWHEEL No Longer Available |
| 40 | 12G180 | 1 | 1098 FLYWHEEL USE U-12G180 |
| 41 | AEA596 | 1 | 948CC RING GEAR USE 9M156 |
| 41 | 12G290 | 1 | 1098CC RING GEAR USE 10M156 |
| 42 | OEM_MAINS1.75-P | 1 SET | 1.75" MAIN BEARINGS 948 AND 1098CG ENGINES |
| 42 | TRI_MAINS1.75-P | 1 SET | 1.75" MAIN TRI-METAL BEARINGS 948 AND 1098CG ENGINES |
| 42 | OEM_MAINS2-P | 1 SET | 2" MAIN BEARINGS FOR 1098CC ENGINES 1098'S WITH 2' MAINS (10CC TYPE) |
| 42 | TRI_MAINS2-P | 1 SET | 2" MAIN BEARINGS TRI-METAL TYPE FOR 1098CC ENGINES FOR 10CC 1098 ENGINES |
| 43 | 2T4092-STD | 1 SET | 948CC CRANKSHAFT TRUST WASHER SET |
| 43 | BHM1292 | 1 SET | 1098 (10CG) ENGINE CRANKSHAFT THRUST WASHER SET 1.75" MAINS |
| 43 | BHM1293 | 1 SET | 1098CC (10CC) ENGINE CRANKSHAFT THRUST WASHERS FOR 10CC 2" MAINS ENGINE |
| 44 | 53K1028 | 3 | BOLT FOR SCROLL SEAL COVER |
| 45 | AEG240 | 1 | REAR COVER GASKET USE 10M114 |
| 46 | HF0505 | 2 | SCREW 5/16" UNF X 5/8" FRONT ENGINE PLATE |
| 47 | WL2051 | 2 | LOCK WASHER 5/16" |
| 48 | 53K2016 | 2 | SCREW FOR FRONT PLATE WITH SIMPLEX CHAINS |
| 49 | 6K831 | 1 | LOCK TAB No Longer Available |
| 50 | 12G619 | 1 | FRONT PLATE GASKET |
| 51 | 2A54 | 6 | MAIN CAP LOCATING DOWEL |
| 52 | 12A1910 | 6 | MAIN CAP BOLT No Longer Available |
| 53 | 6K927 | 6 | MAIN CAP LOCK TAB |
| 54 | 12A1851 | 1 | OIL PRESSURE RELEIF VALVE CAP |
| 55 | 6K431 | 1 | COOPER WASHER OIL PRESSURE CAP |
| 56 | 6K853 | 1 | OIL PRESSURE SPRING STANDARD |
| 56 | AEA536 | 1 | UPRATED COOPER "S" SPRING |
| 57 | 12H865 | 1 | OIL PRESSURE PLUNGER VALVE |
| 58 | GHF117 | 1 | SCREW, 1/4" UNF X .75" |
| 59 | GHF321 | 1 | SHAKE PROOF WASHER 1/4" |
| 60 | 12A1136 | 1 | SLEEVE FOR DISTRIBUTOR DRIVE SPINDLE USE U-12A1136 |
| 61 | 13H2792 | 1 | DISTRIBUTOR ADAPTER O-RING |
| 62 | 12G4499 | 1 | DISTRIBUTOR DRIVE GEAR USE U-12G4499 |
| 63 | 2A14 | 8 | PUSHROD |
| 64 | 2A13 | 8 | CAM FOLLOWER LIFTER |
| 65 | WKN505 | 1 | CAMSHAFT WOODRUFF KEY |
| 66 | 2A299 | 1 | PIN DRIVE CAMSHAFT DRIVE PIN REPLACEMENT No Longer Available |
| 67 | 6K629 | 1 | NUT CAMSHAFT RETAINING |
| 68 | 2A759 | 1 | CAMSHAFT NUT LOCK TAB |
| 69 | 8G549 | 2 | SIMPLEX GEAR TENSIONER RING |
| 70 | 12G4337 | 1 | SIMPLEX CAMSHAFT GEAR USE U-12G4337 - NOT EARLIEST TYPE FOR TENSIONERS |
| 71 | GHF117 | 3 | SCREW, 1/4" UNF X .75" |
| 72 | GHF321 | 3 | SHAKE PROOF WASHER 1/4" |
| 73 | AHU2379 | 1 | CAMSHAFT RETAINING PLATE |
| 74 | 3H2127 | 1 | SIMPLEX TIMING CHAIN |
| 75 | 8G725 | 1 | CRANKSHAFT GEAR |
| 76 | AEA312 | 1 | NUT CRANKSHAFT |
| 77 | 12A398 | 1 | CRANKSHAFT NUT LOCK TAB |
| 78 | CAM6323 | 1 | CRANKSHAFT PULLEY |
| 79 | 12A1148 | 1 | OIL THROWER |
| 80 | 6K628 | A/R | .005" SHIM FOR CRANKSHAFT PULLEY |
| 81 | 6K836 | 1 | CRANKSHAFT WOODRUFF KEY |
| 82 | 1G1167 | 1 | CRANKSHAFT PLUG No Longer Available |
| 83 | 2K7816 | 2 | FLYWHEEL LOCKTAB USE 12G612 |
| 84 | 6K630 | 4 | BOLT FOR FLYWHEEL TO CRANK USE 10M158 |
| 85 | 1G2984 | 2 | DOWEL FLYWHEEL TO PRESSURE PLATE |
| 86 | 1A1559 | 1 | SPIGOT BEARING FOR END OF CRANK TO INPUT GEAR USE 10M131 |
| 87 | OEM_ROD-P | 1 SET | ROD BEARINGS 1.625" VARIOUS OVERSIZES OEM TYPE |
| 87 | TRI_ROD-P | 1 SET | ROD BEARINGS 1.625" VARIOUS OVERSIZES TRI-METAL TYPE |
| 88 | 2A660 | 4 | LOCKTAB FOR CONROD MAIN END |
| 89 | 2K8169 | 4 | CORE PLUG FOR SMALL BORE BLOCKS USE CP8-EA. |
